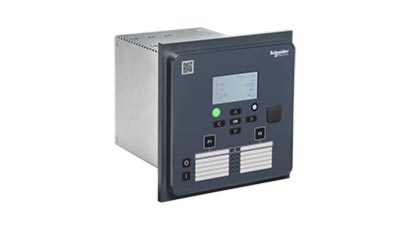

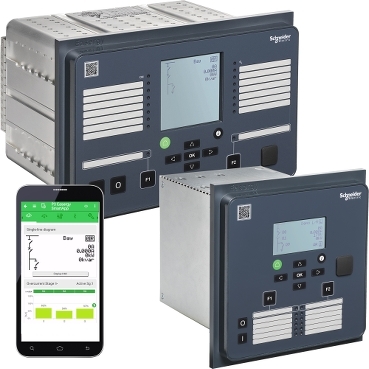

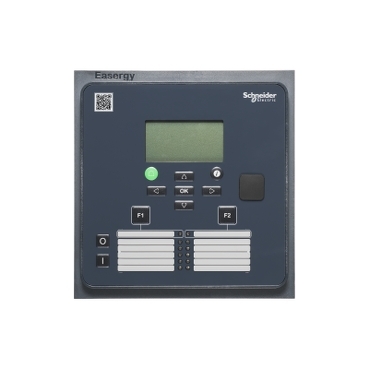

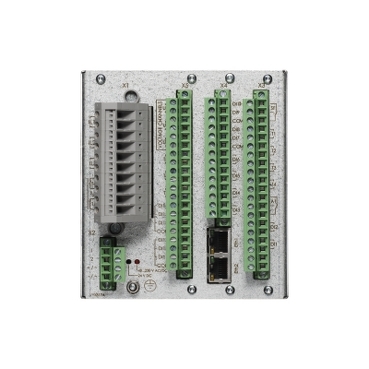

Easergy P3
Compact protection relays for standard applications
Easy-to-use protective relays for Medium Voltage applications with fast delivery, ideal for Panel builders, Contractors and Partners to save time. From overcurrent to advanced protection, with Arc detection and Ethernet communication including IEC 61850

Specification

Description Specification
Type (Model Name) P3U10 P3U20 P3U30
Auxiliary Power Supply 24-48Vdc
/ 10-240Vac/dc
CT Inputs 4
VT inputs 1 4
Number of Digital input (max) 2 10 16
Number of Digital Output (max) 5 5 8
Number of Analogue input (max) 0 0 4
Number of Analogue Output (max) 0 0 4
Number of RTDs (max) 0 0 12
Protection Elements Fault locator (21FL)*
Synchro-check (25)*
Directional active underpower (32)*
Phase undercurrent (37)
Temperature monitoring (38/49T)
Negative sequence overcurrent (motor, generator) (46)
Cur. unbalance, broken conductor (46BC)
Excessive start time, locked rotor (48/51LR)
Thermal overload (49)
Phase overcurrent (50/51)
Earth fault overcurrent (50N/51N)
Circuit breaker failure (50BF)
Capacitor bank unbalance (51C)
Voltage dependant overcurrent (51V)
Over / Under voltage (59/27)
Capacitor overvoltage (59C)
Neutral voltage displacement (59N)
Restricted earth fault (64)
Frequent start inhibition (66)
Directional phase overcurrent (67)*
Directional earth-fault o/c (67N)
Transient intermittent (67NI)
Magnetizing inrush detection (68F2)
Fifth harmonic detection (68H5)
Auto-reclose (79)
Under / Over frequency (81)*
Rate of change of frequency (81R)*
Current transformer supervision / VT supervision (CTS/VTS)*
Communication Protocol - IEC60870-5-103, DNP3.0, Modbus, IEC61850, Profibus DP, SPAbus
